GV17 – Sistema di controllo accessi e/o rilevazione presenze
- 10.02.2023
- Manufacturer: Trikdis
The GV17 controller and the Protegus 2 system together have all features needed for a simple entry and / or employee time tracker system.
What Trikdis devices can be used ?
Main features
- Simple entry / exit or employee time tracking
- The employee can enter / exit or start / stop the time tracking by
- Proximity card, RFID device or with phone NFC (depends on the Wiegand reader)
- By entering a code on the keypad
- Biometric fingerprint (with a suitable fingerprint Wiegand device)
- From the free Protegus 2 app
- A worker can have any combination of these above.
- Up to 1000 users
- No event limit in Protegus 2 (the system records all events from its creation)
- The row log (event list) can be exported from any admin user profile in the Protegus 2 app in a table (CSV) format that can be edited in Excel.
- The system handles a maximum of 2 Wiegand readers.
- The opening of the door or gate magnetic lock, turnstile is handled by the built-in relay of the GV17

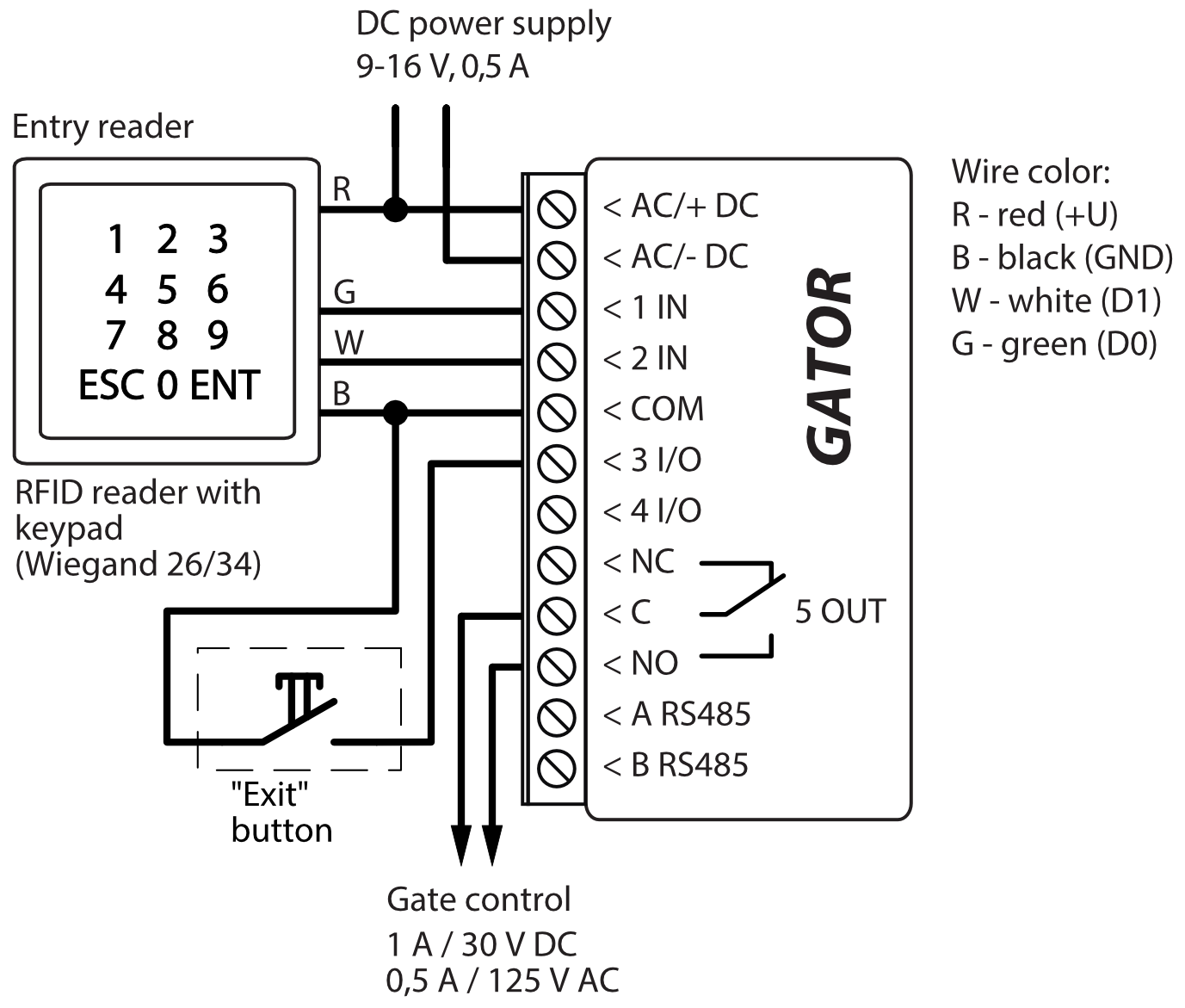

Design for 1 reader

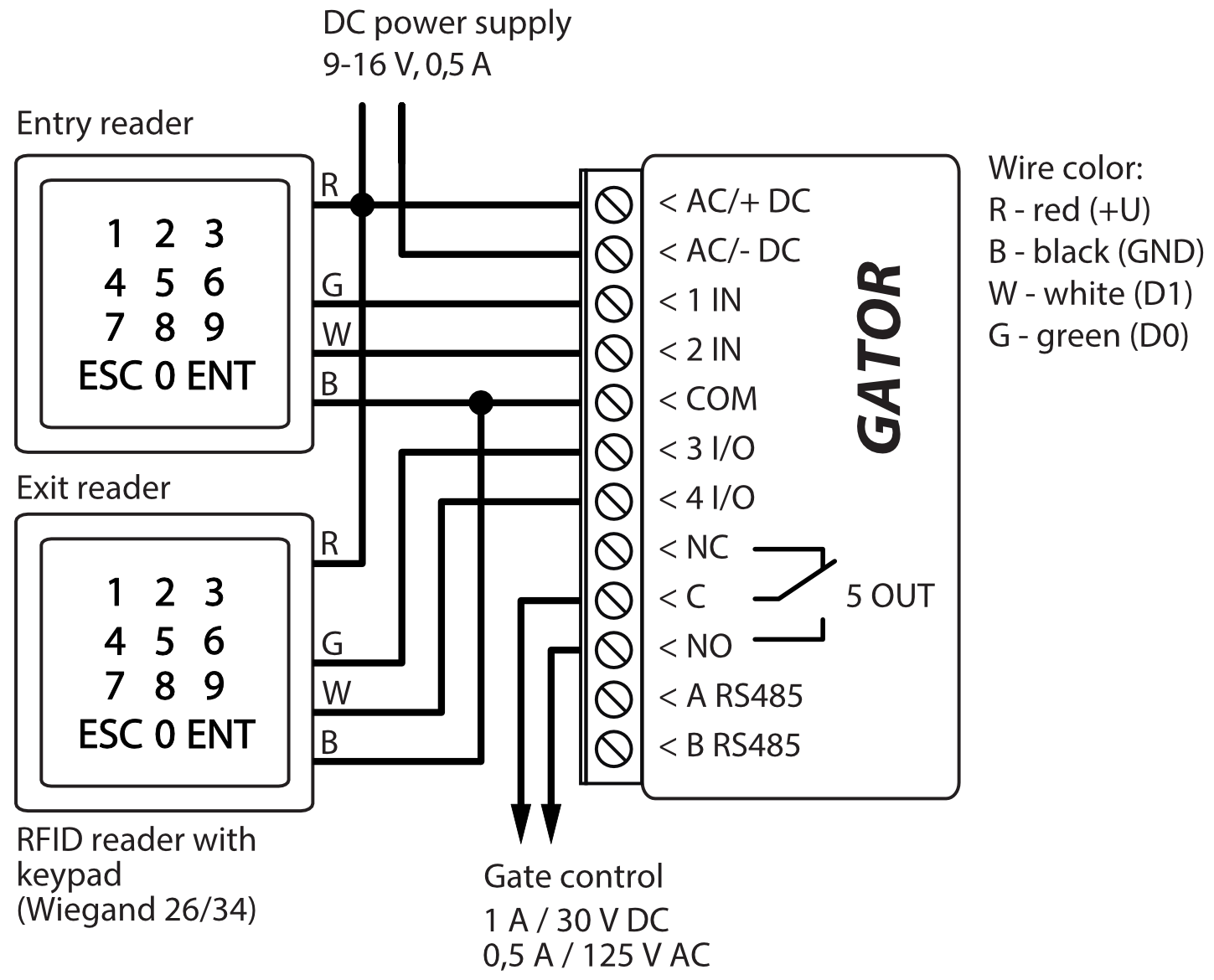

Design for 2 readers
